10AWG Drone Connector XT60 Series Model Plug With 35A Rated And 2-3 PIN Configuration
The XT60 Series Model Plug Connectors are high-reliability, gold-plated power connectors engineered for safe, high-current DC connections in lithium battery systems and portable power devices. Available in 2PIN, 3PIN, and mixed configurations with multiple color options (yellow, black, red, blue), the series features UL94 V-0 flame-retardant PA housing, low-resistance copper alloy contacts, and robust 100-cycle mating durability. Rated up to 40A (35A MAX typical) and 600V DC, the XT60 series is the industry-standard connector for RC models, drones, e-bikes, controllers, chargers, and motors.
Keywords:
#XT60 connector
#XT60 plug
#35A connector
#XT60E connector
#XT60 35A gold plated 2PIN connector for lithium batteries
#XT60E 600V DC 35A panel mount power connector
#XT60 series 100 cycle mating RC battery plug yellow black
#UL94 V-0 XT60 3PIN connector for drone motor controller
#XT60 40A low resistance connector for chargers and electric scooters
#RC connector
#Lithium battery connector
#Drone connector
#Model aircraft connector
#E-bike connector
#Power connector
#ESC connector
XT60 Series Model Plug Connectors
| Category |
Parameter |
Specification |
Remarks |
| Electrical |
Rated Current |
25–40A (35A MAX @ 10AWG, <85°C) |
- |
| Electrical |
Rated Voltage / Withstand Voltage |
500V–600V DC |
- |
| Electrical |
Contact Resistance |
≤0.8–1.0mΩ |
Gold-plated contacts |
| Electrical |
Insulation Resistance |
≥2000MΩ |
- |
| Environmental |
Operating Temperature |
-20°C ~ +120°C |
- |
| Environmental |
Protection Degree |
IP40 |
- |
| Environmental |
Salt Spray Resistance |
48 hours |
- |
| Mechanical |
Mating Cycles |
100 times |
Push-fit design |
| Material |
Contact Material |
Copper alloy, gold-plated |
High conductivity & corrosion resistance |
| Material |
Housing Material |
Flame-retardant PA (Polyamide) |
Multiple colors available |
| General |
Flammability Rating |
UL94 V-0 |
- |
Highlighting Benefits
- High current capacity up to 40A (35A MAX) with excellent heat dissipation
- Ultra-low contact resistance (≤0.8–1.0mΩ) and gold-plated contacts for superior conductivity and anti-corrosion performance
- High withstand voltage (500–600V DC) and insulation resistance ≥2000MΩ for safe power transmission
- 100 mating cycles with secure push-fit design for repeated use
- UL94 V-0 flame-retardant PA housing in multiple colors for easy polarity identification
- Wide operating temperature range (-20°C to 120°C) and IP40 protection
- 180° wire soldering + panel-mount compatible design for fast installation
- Compact, lightweight, and cost-effective – the global standard for RC, drone, and lithium battery power connections
How to Install such XT60 Series Model Connector?
180° wire soldering (welding) type. The connector is injection-molded and pre-assembled for direct soldering to wires (recommended 10AWG for 35A). Suitable for panel or surface mounting. The male and female halves mate with a secure push-fit connection. Color coding and polarity keys prevent reverse connection. No special tools required beyond standard soldering equipment and heat shrink tubing.
Scenario Applications
- Lithium battery packs for RC cars, planes, helicopters, and drones
- Electronic Speed Controllers (ESC) and motor connections
- Battery chargers and balance chargers
- Electric bicycles, scooters, and skateboards
- Robots, industrial automation, and power tools
- Solar power systems and portable energy stations
- Model aircraft, FPV racing, and hobby electronics
- Any medium-power DC connection requiring reliable, repeated mating and polarity safety
|
|

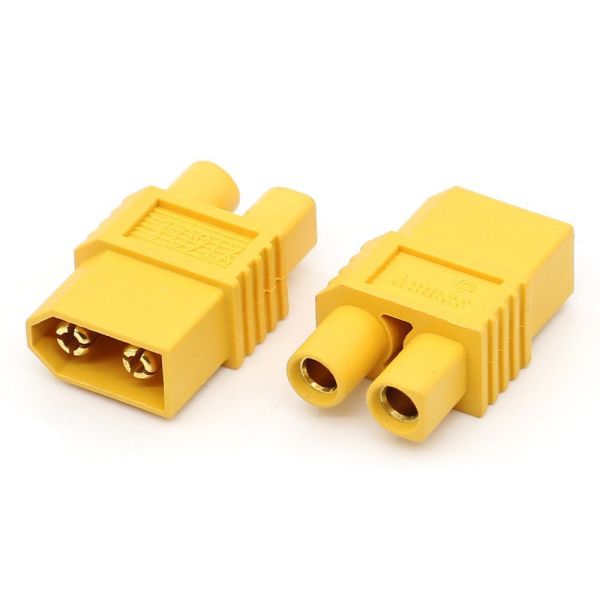

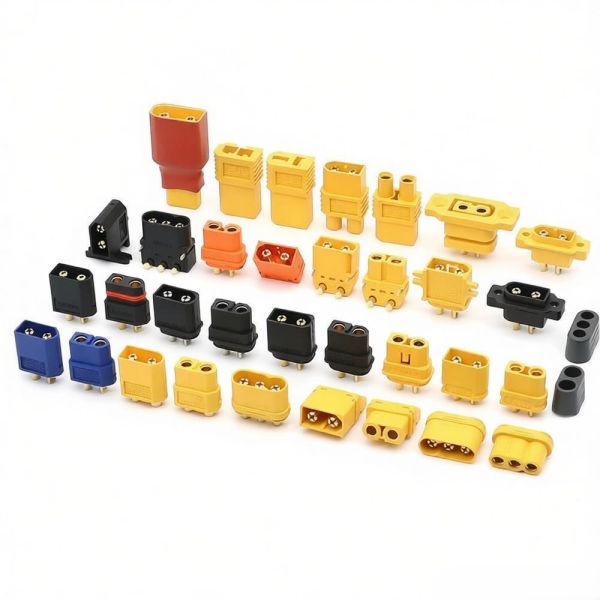

10AWG Drone Connector XT60 Series Model Plug With 35A Rated And 2-3 PIN Configuration Images
|
